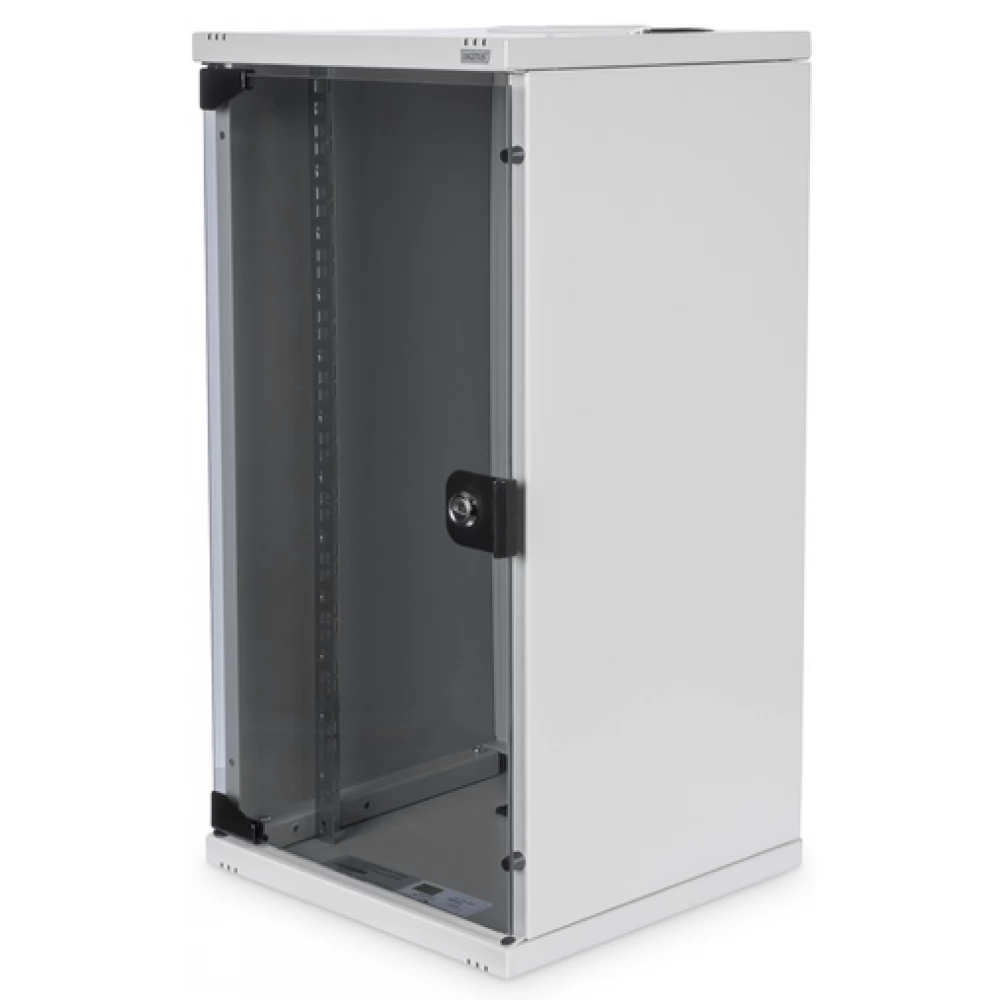

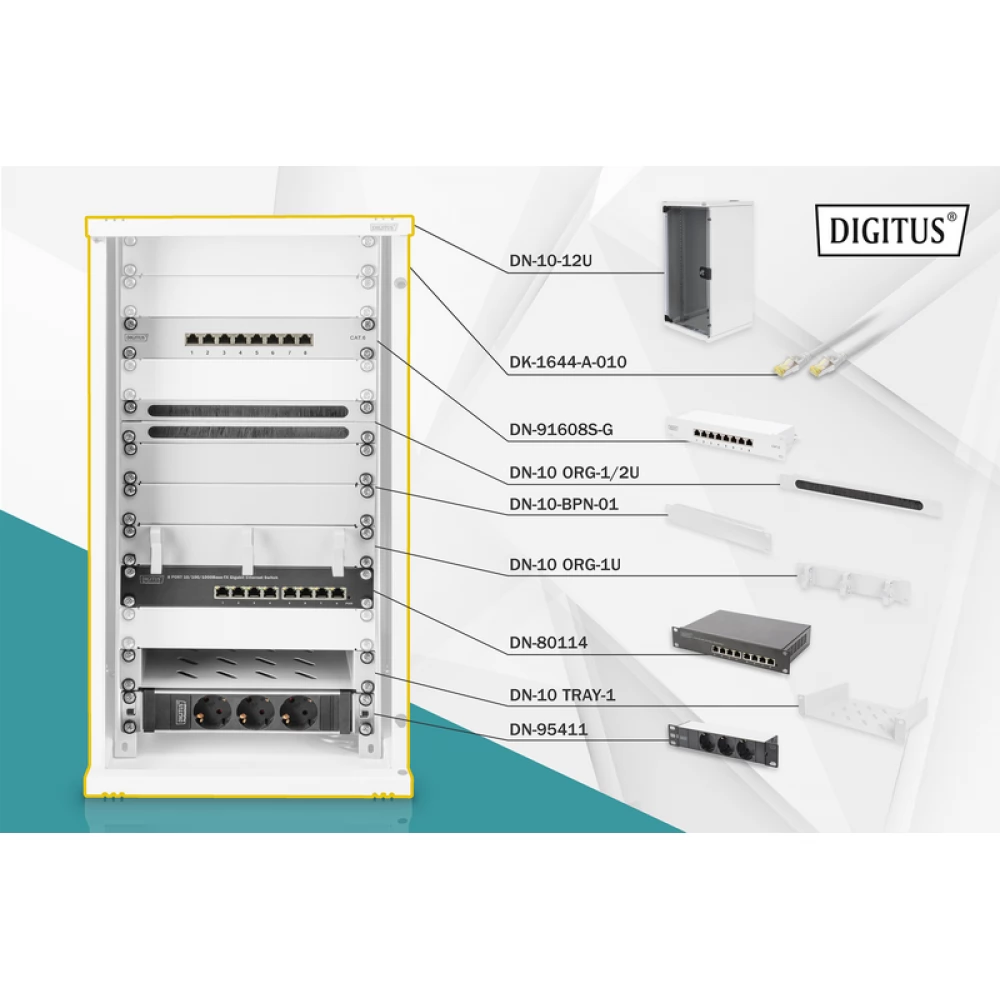

- Including wall housing, 12HE, 592 x 312 x 300 mm (DN-10-12U-B)

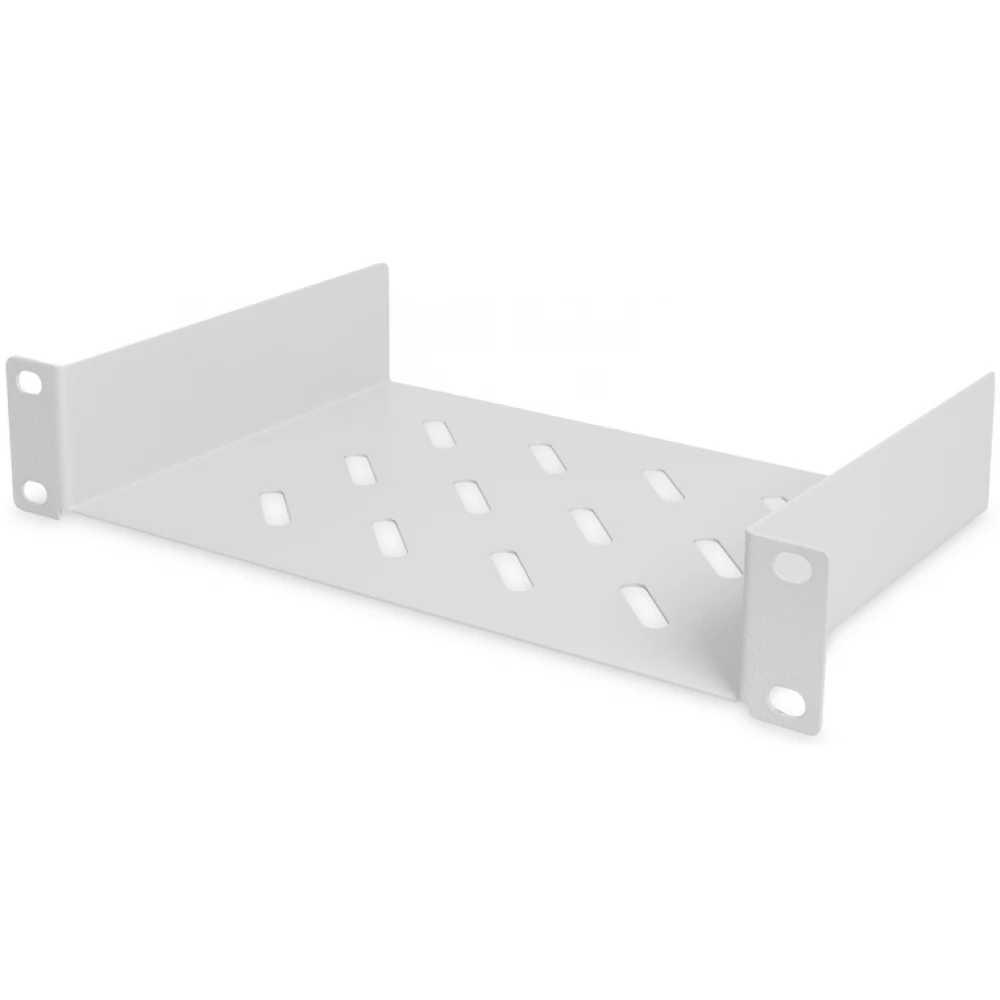

- Including shelf, 1HE (DN-10 TRAY-1-B)

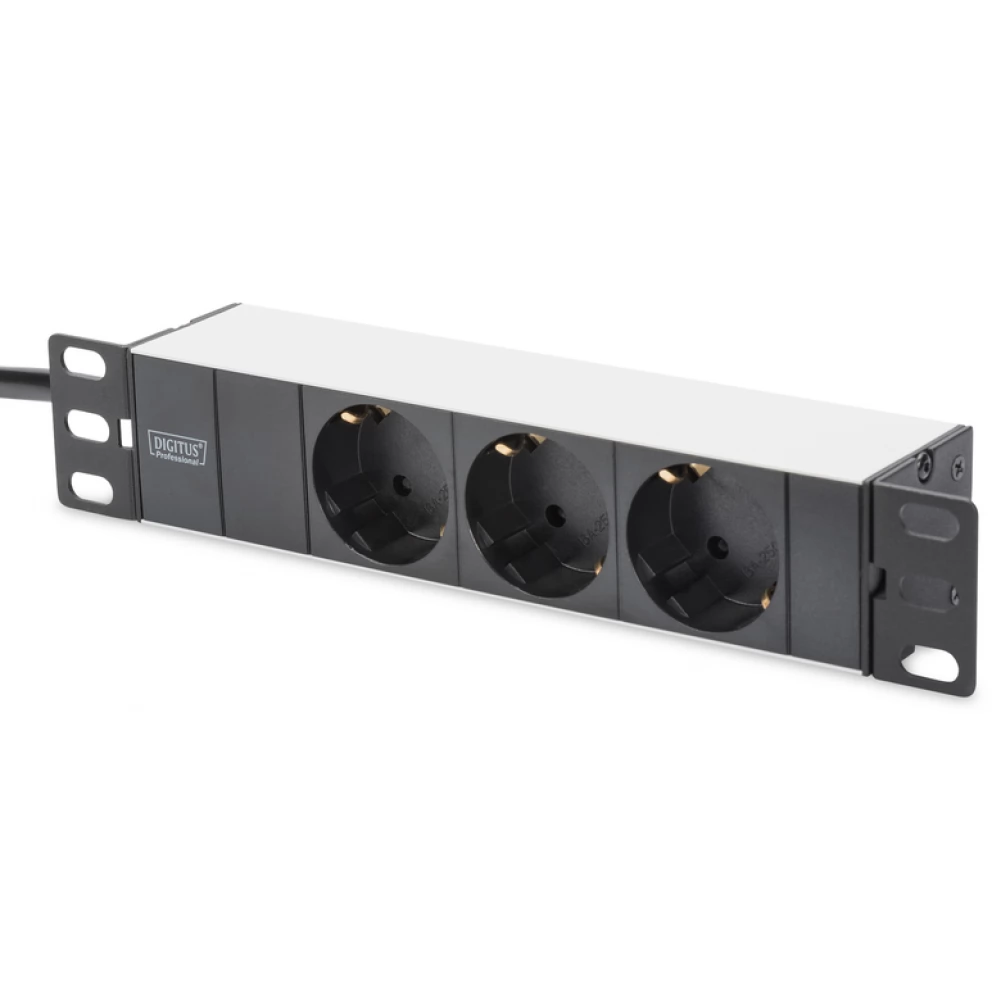

- Including power strip, 1HE, 3x safety socket (DN-95411)

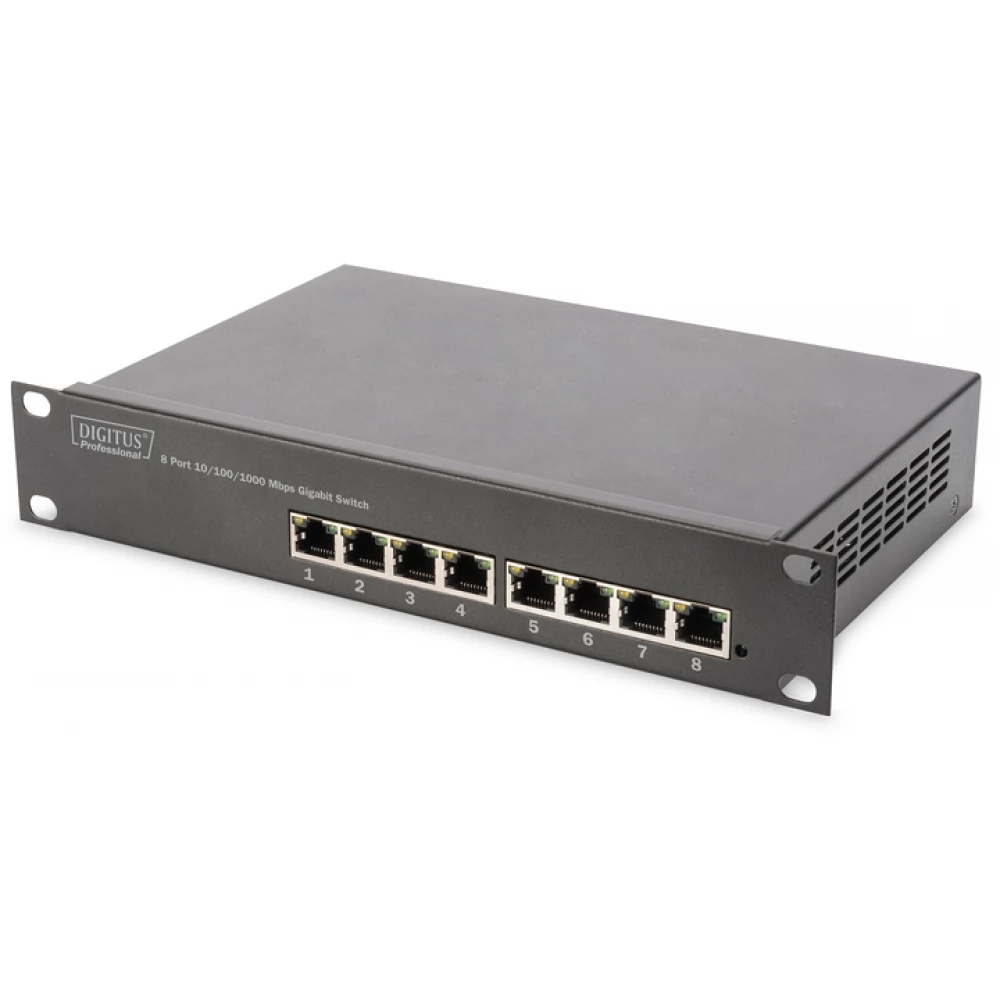

- Including Gigabit Ethernet Switch, 8-port (DN-80114)

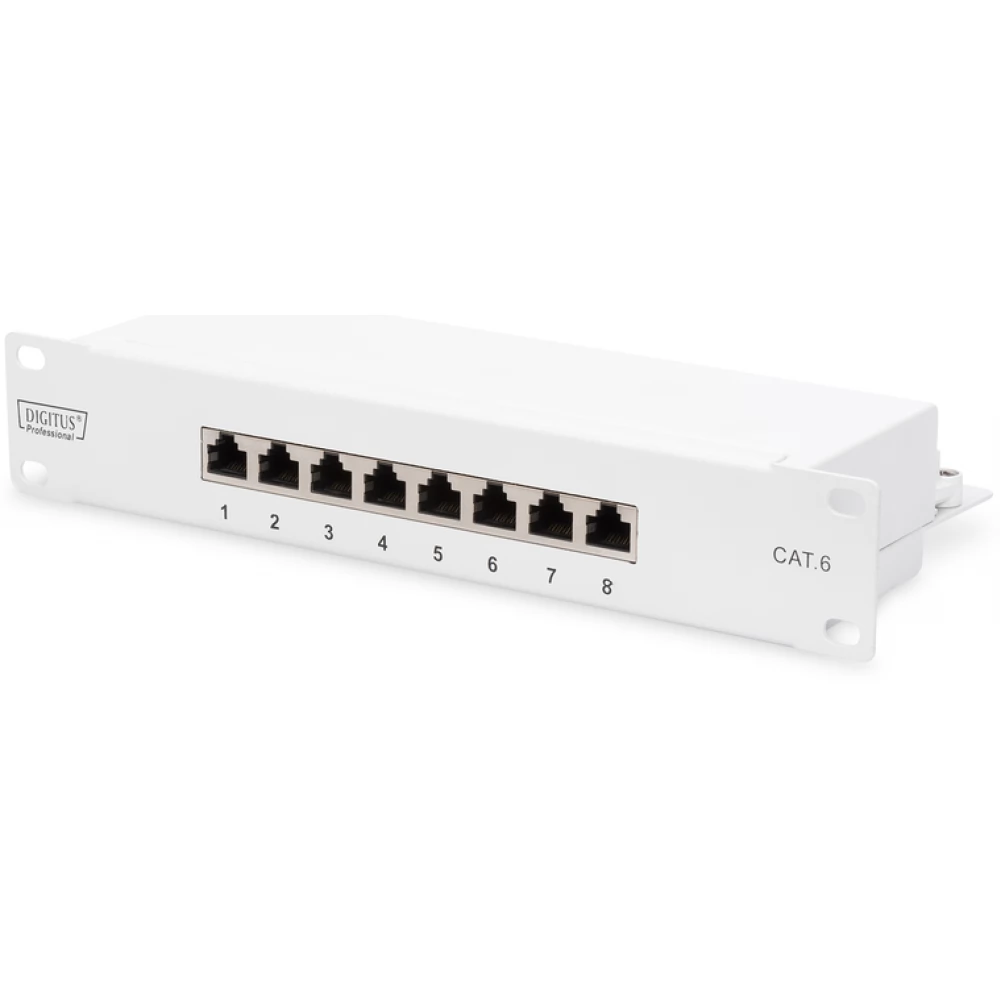

- Including CAT 6, Class E, Patch Panel, 8-port, screened (DN-91608S)
- Including 10 x CAT 6, Cable E, S-FTP patch cable, 1 m (DK-1644-010/BL)

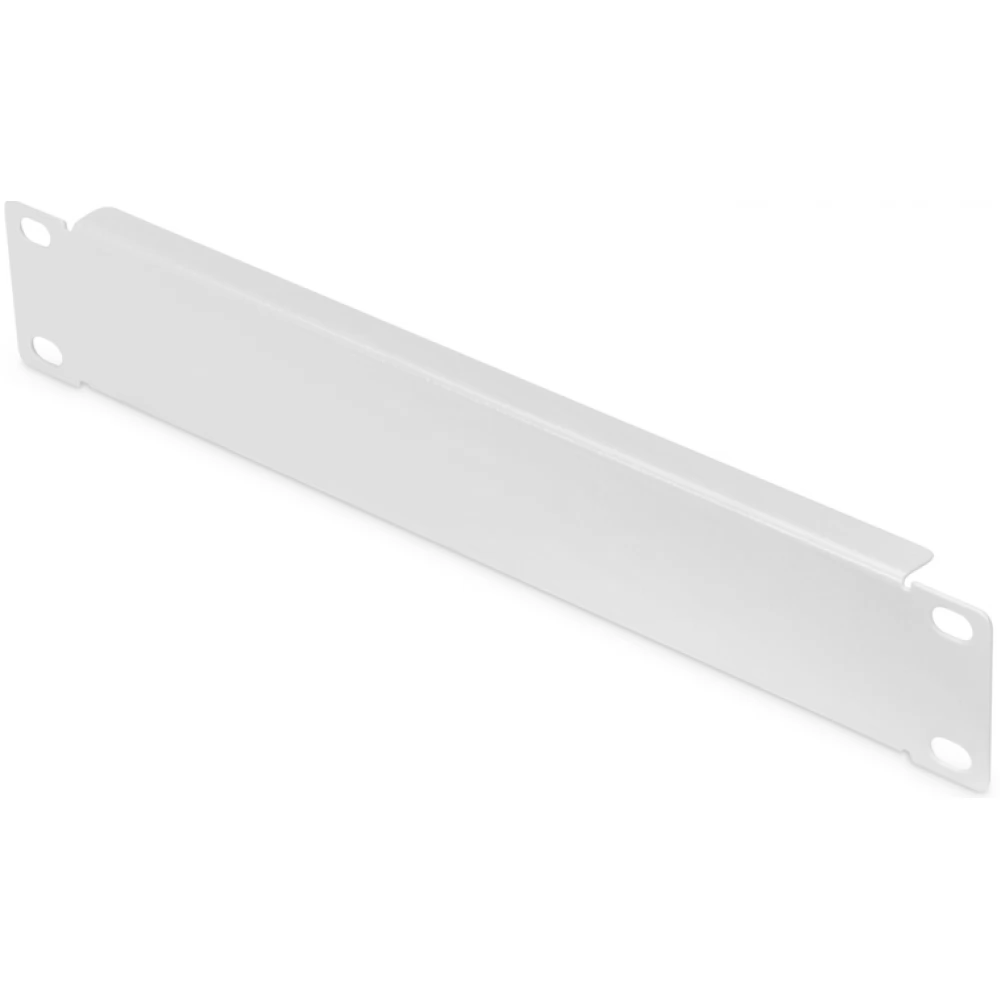

- Including dummy cover, 1 rack unit (DN-10-BPN-01-B)

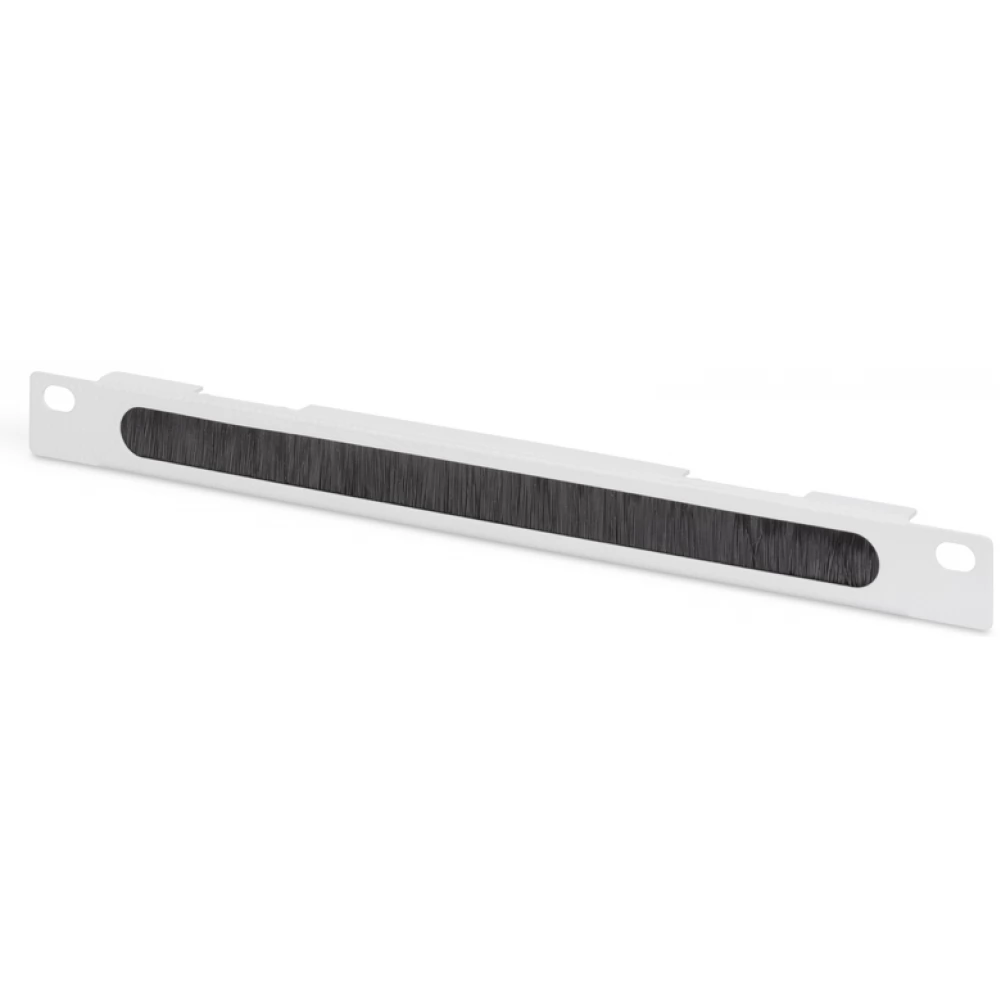

- Including cable brush strip (DN-10-ORG-1-2U-B)

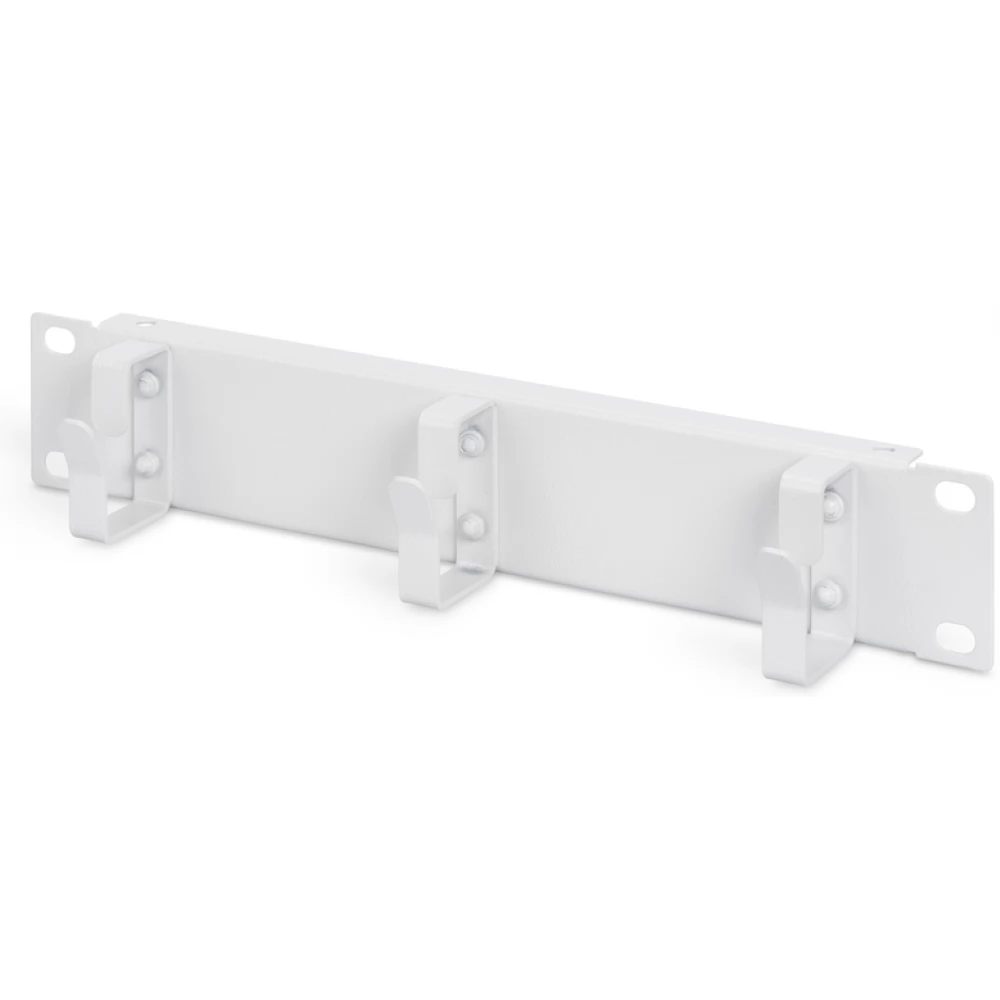

- Including cable management panel (DN-10-ORG-1U-B)

- Wall housing dimensions (H x W x D): 592 x 312 x 300 mm
- Power strip with 3 safety plug sockets 250VAC 50/60Hz / 16A / 4000W
- Power strip with 2 m mains cable H05VV-F 35 1.5 mm² with safety plug sockets
- Switch complies with network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
- Patch panel for applications up to 250 MHz, 1GBase-T
- Cable installation on patch panel via LSA rails, color coded in accordance with EIA/TIA 568 A & B
- CAT 6 S-FTP Patch Cable, Cu, LSZH AWG 27/7, Length 1 m, Color gray
- 1 rack unit dummy cover plate, 45 x 255 x 10 mm, gray (RAL 7035)
- 0.5 rack unit cable brush strip, 22 x 254 x 12 mm, gray (RAL 7035)
- 1 rack unit cable management panel, 3x cable rings, 44x254x60 mm, gray (RAL 7035)
- IP protection class: IP20
- Color: light grey, RAL 7035
- Depth: 300 mm
- Front door: Glass door, single opening
- Units: 12
- Load capacity: 30 kg
- Mounted: yes
- Side panels: Both sides
- Cabinet type: Network cabinet
- Width: 312 mm
